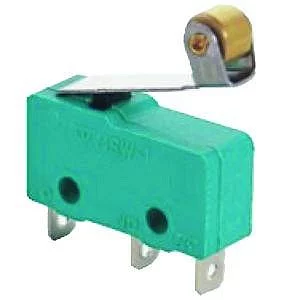

MSW-13; micro switch;

Symbol Micros: PRZ MSW13

37359

PRZ MSW13

Contractor Symbol:

Case : Rys.MSW-13

Datasheet

Technical drawing Add to favourites

5A; 250VAC; ON-(ON); SPDT; 3P; endurance: 100000 cycles; ambient temperature: -25°C+80°C

Parameters

Dimensions:	19,8x10,2x6,4mm
Contacts rating:	5A 250VAC
Operating temperature (range):	-25°C ~ 80°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch

All parameters

Manufacturer:: SWI Manufacturer part number: MSW-13 RoHS Case style: Rys.MSW-13

In stock:

0 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,7090	0,4478	0,3545	0,3195	0,3078

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-07-30

Quantity of pcs.: 1000

• Parameters

Dimensions:	19,8x10,2x6,4mm
Contacts rating:	5A 250VAC
Operating temperature (range):	-25°C ~ 80°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
