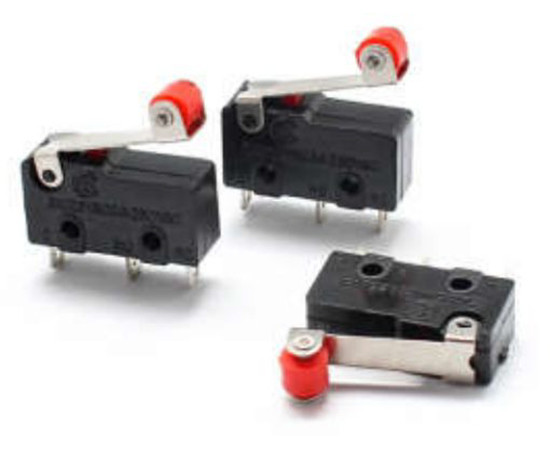

MSW-15; micro switch;

Symbol Micros: PRZ MSW15

312126

PRZ MSW15

Contractor Symbol:

Case : Rys.MSW-15

Datasheet

Technical drawing Add to favourites

5A; 250VAC; OFF-(ON); SPDT; 3P; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	19,8x10,8x6,4mm
Contacts rating:	5A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch

All parameters

Manufacturer:: FILN Manufacturer part number: KW10-FZ4F RoHS Case style: Rys.MSW-15

In stock:

90 pcs.

Quantity of pcs.	2+	10+	30+	100+	400+
Net price (EUR)	0,9068	0,5688	0,4732	0,4196	0,3939

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	19,8x10,8x6,4mm
Contacts rating:	5A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
