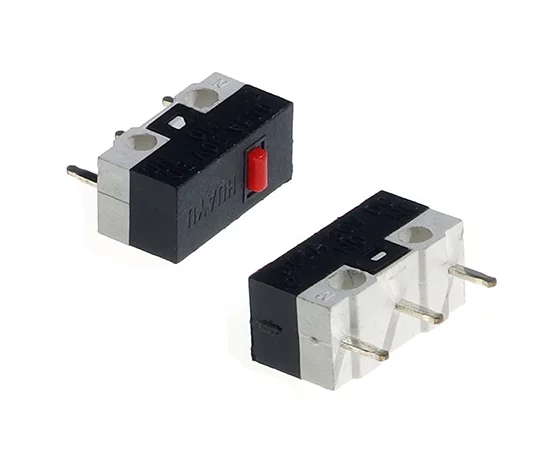

MSW-21 II; micro switch;

Symbol Micros: PRZ MSW21 II

255355

PRZ MSW21 II

Contractor Symbol:

Case : Rys.MSW-21 II

Datasheet

Technical drawing Add to favourites

1A; 250VAC; OFF-(ON); SPDT; 3P; L=13.5mm; endurance: 10000 cycles; ambient temperature: -25°C+75°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	12,8x6,5x5,8mm
Contacts rating:	1A 250VAC
Lever length:	13,5mm
Operating temperature (range):	-25°C ~ 75°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT

All parameters

Manufacturer:: FILN Manufacturer part number:   Case style: Rys.MSW-21 II

In stock:

420 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,1930	0,0967	0,0576	0,0478	0,0429

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	12,8x6,5x5,8mm
Contacts rating:	1A 250VAC
Lever length:	13,5mm
Operating temperature (range):	-25°C ~ 75°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
