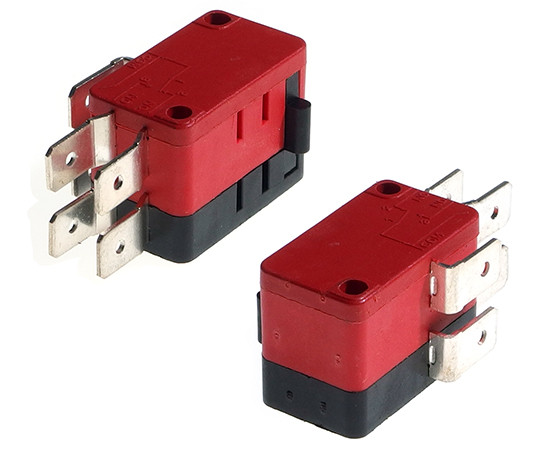

MSW-29; micro switch;

Symbol Micros: PRZ MSW29

250418

PRZ MSW29

Contractor Symbol:

Case : Rys.MSW29

Datasheet

Technical drawing Add to favourites

16A; 250VAC; OFF-(ON); DPDT; 6P; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Dimensions:	27,8x15,9x20,5mm
Contacts rating:	16A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	DPDT
Type of switch:	Micro switch

All parameters

Manufacturer:: FILN Manufacturer part number: FL8-19 RoHS Case style: Rys.MSW29

In stock:

59 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,9136	1,5188	1,3720	1,2998	1,2757

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	27,8x15,9x20,5mm
Contacts rating:	16A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	DPDT
Type of switch:	Micro switch
