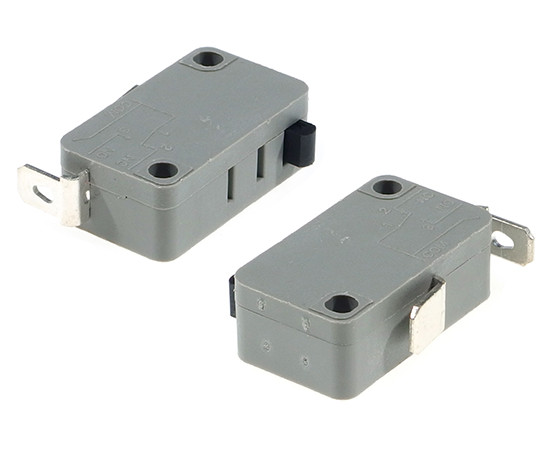

MSW-38; micro switch;

Symbol Micros: PRZ MSW38

250423

PRZ MSW38

Contractor Symbol:

Case : Rys.MSW38

Datasheet

Technical drawing Add to favourites

16A; 250VAC; OFF-(ON); SPDT; 2P; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Dimensions:	22x16x10,5mm
Contacts rating:	16A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch

All parameters

Manufacturer:: FILN Manufacturer part number: FL8-54 RoHS Case style: Rys.MSW38

In stock:

10 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,8679	0,5754	0,4764	0,4292	0,4127

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	22x16x10,5mm
Contacts rating:	16A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
