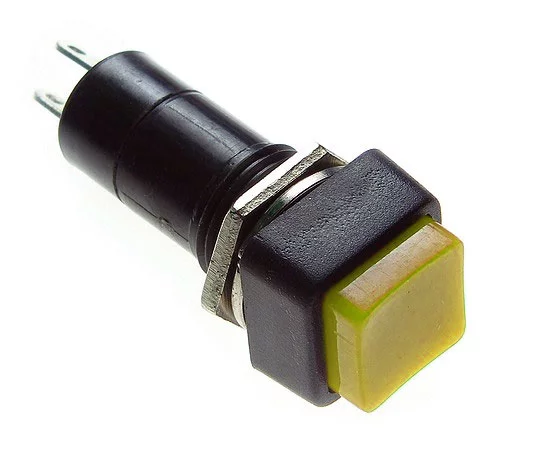

Switch PBS-12A Yellow

Symbol Micros: PRZ Pbs12ay

51085

PRZ Pbs12ay

Contractor Symbol:

Case : Rys.PBS-12Ay

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; yellow colour; square; 3A 125VAC 1A 250VAC; endurance: 50000 cycles

Parameters

Contacts rating:	3A 125VAC 1A 250VAC
Button colour:	Yellow
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Backlight colour:	None
Button shape:	Square

All parameters

Manufacturer:: SWI Manufacturer part number: PBS12A Y RoHS Case style: Rys.PBS-12Ay

In stock:

500 pcs.

Quantity of pcs.	2+	10+	40+	100+	500+
Net price (EUR)	0,6329	0,3994	0,3200	0,2966	0,2756

Add inquiry (RFQ)

Packaging:
100/500 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	3A 125VAC 1A 250VAC
Button colour:	Yellow
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Backlight colour:	None
Button shape:	Square
Illumination:	None
