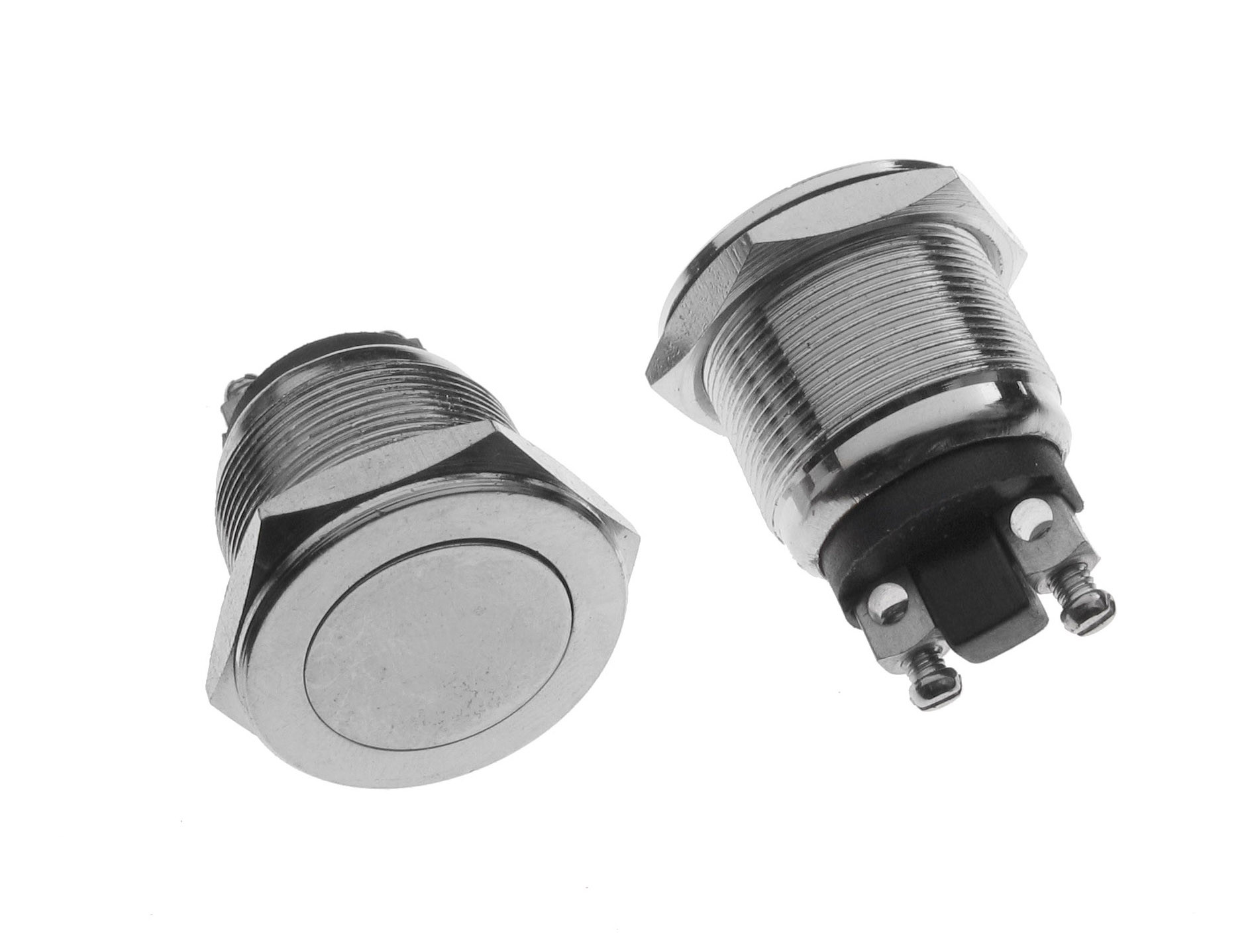

Push-button switch; PBS-28B-2

Symbol Micros: PRZ Pbs28b-2

23294

PRZ Pbs28b-2

Contractor Symbol:

Case : Rys.PBS-28B-2

Datasheet

Technical drawing Add to favourites

19mm; momentary; 1NO; nikel plated; screw terminal; front shape-flat; 4A 125VAC or 2A 250VAC; IP40; endurance: 50000 cycles

Parameters

Contacts rating:	4A/125VAC lub 2A/250VAC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Flat
IP rating:	IP40
Contacts configuration:	N/A
Mounting hole diameter:	19mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	4A/125VAC lub 2A/250VAC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Flat
IP rating:	IP40
Contacts configuration:	N/A
Mounting hole diameter:	19mm
Leads:	Screw-on
Illumination:	N/A
Illimination voltage:	N/A
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
