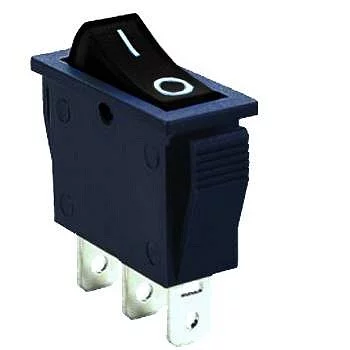

RS102-1C7b; rocker switch;

Symbol Micros: PRZ Rs102-1c

16238

PRZ Rs102-1c

Contractor Symbol:

Case : Rys.RS102-1C7b

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-ON; cap colour: black; SPDT; 3P; 20A 125VAC; 15A 250VAC; 35A 12VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts rating:	15A 250V 35A 12V
Key button colour:	Black
Switching method:	ON-ON
Contacts configuration:	SPDT
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Body colour:	Black

All parameters

Manufacturer:: SWI Manufacturer part number: RS-102-1C7 Black RoHS Case style: Rys.RS102-1C7b

In stock:

1074 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,5709	0,3603	0,2855	0,2597	0,2480

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/1000 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	15A 250V 35A 12V
Key button colour:	Black
Switching method:	ON-ON
Contacts configuration:	SPDT
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Body colour:	Black
Manufacturer:	N/A
Type of switch:	Rocker
