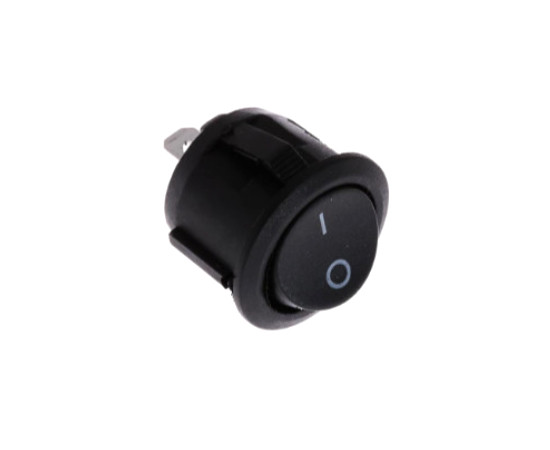

SMRS101-2b; rocker switch;

Symbol Micros: PRZ Smrs101-2b

292452

PRZ Smrs101-2b

Contractor Symbol:

Case : Rys.SMRS101-2b

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; cap colour: black; SPST; 2P; 3A 125VAC or 1A 250VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Contacts rating:	3A 125V 1A 250V
Key button colour:	Black
Switching method:	ON-OFF
Contacts configuration:	SPST
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Body colour:	Black

All parameters

Manufacturer:: SWI Manufacturer part number: SMRS-101-2C3/B RoHS Case style: Rys.SMRS101-2b

In stock:

470 pcs.

Quantity of pcs.	3+	10+	50+	250+	1000+
Net price (EUR)	0,3596	0,2359	0,1686	0,1455	0,1382

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	3A 125V 1A 250V
Key button colour:	Black
Switching method:	ON-OFF
Contacts configuration:	SPST
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Body colour:	Black
Manufacturer:	N/A
Type of switch:	Rocker
