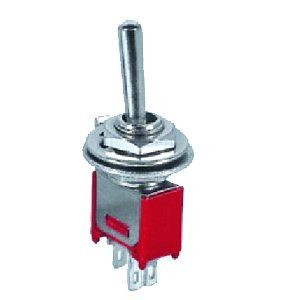

SMTS102-2A1; toggle switch;

Symbol Micros: PRZ Smts1022a1

13286

PRZ Smts1022a1

Contractor Symbol:

Case : Rys.SMTS102-2A1

Datasheet

Technical drawing Add to favourites

single pole; solder terminals; ON-ON; SPDT; 3P; 3A; 125V; 1.5A; 250V

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPDT
Switching method:	ON-ON
Type of outputs:	For soldering
Accessories type:	N/A
Contacts rating:	3A 125V 1.5A 250V
Kind of toggle:	Round
Type of switch:	Lever

All parameters

Manufacturer:: SWI Manufacturer part number: SMTS-102-2A1 RoHS Case style: Rys.SMTS102-2A1

In stock:

369 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,6717	0,4256	0,3359	0,3037	0,2922

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2024-12-06

Quantity of pcs.: 500

• Parameters

Contacts configuration:	SPDT
Switching method:	ON-ON
Type of outputs:	For soldering
Accessories type:	N/A
Contacts rating:	3A 125V 1.5A 250V
Kind of toggle:	Round
Type of switch:	Lever
