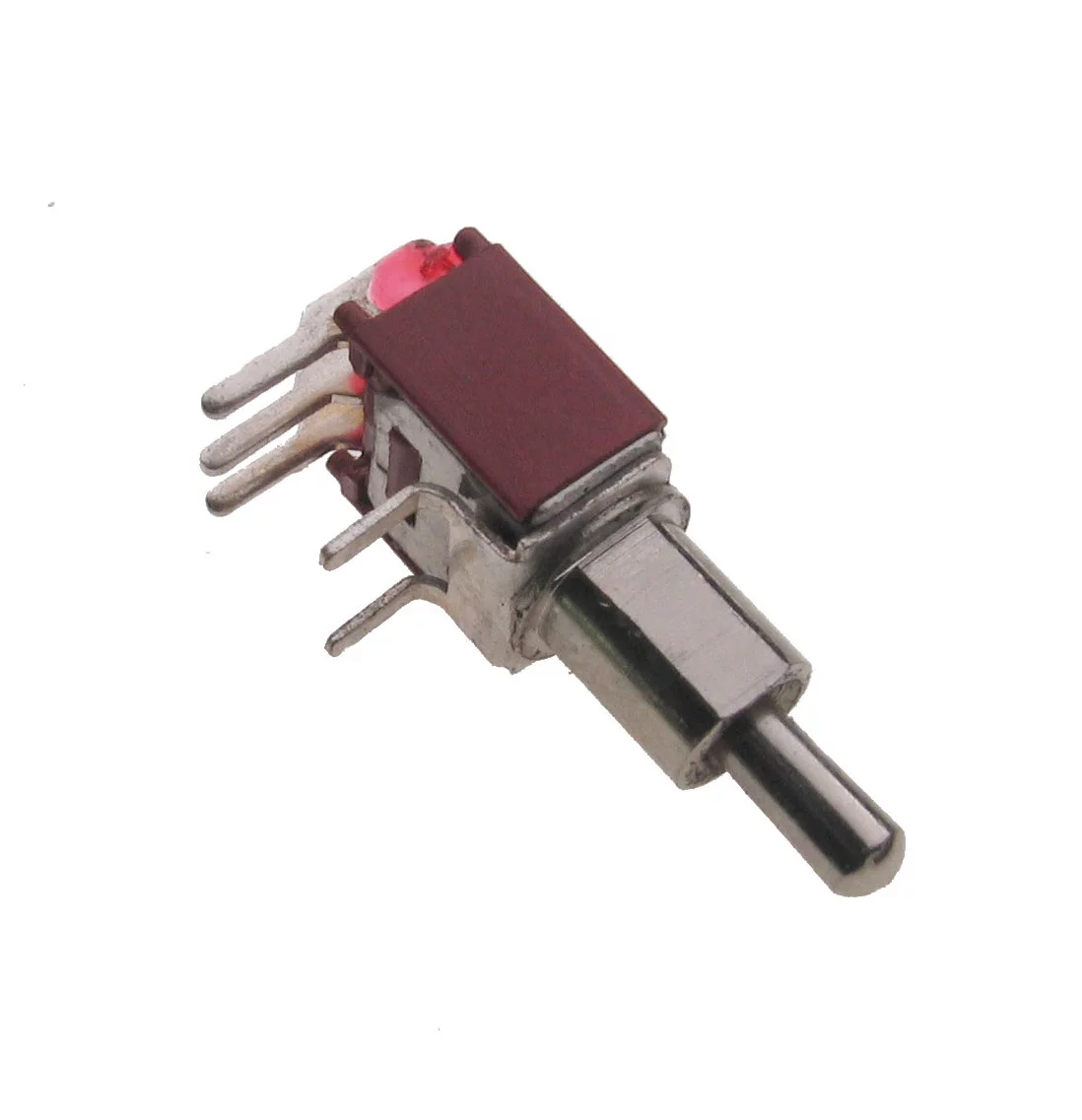

SMTS103-2C3; toggle switch;

Symbol Micros: PRZ Smts103-2c3

19807

PRZ Smts103-2c3

Contractor Symbol:

Case : Rys.SMTS103-2C3

Datasheet

Technical drawing Add to favourites

single pole; angled 90°; PCB; ON-OFF-ON; SPDT; 3P; 3A; 125V; 1.5A; 250V

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPDT
Switching method:	ON-OFF-ON
Type of outputs:	For printing
Accessories type:	N/A
Contacts rating:	3A 125V 1.5A 250V
Kind of toggle:	Round
Type of switch:	Lever

All parameters

Manufacturer:: SWI Manufacturer part number: SMTS103-2C3 RoHS Case style: Rys.SMTS103-2C3

In stock:

96 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,7201	0,4555	0,3589	0,3244	0,3129

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	SPDT
Switching method:	ON-OFF-ON
Type of outputs:	For printing
Accessories type:	N/A
Contacts rating:	3A 125V 1.5A 250V
Kind of toggle:	Round
Type of switch:	Lever
