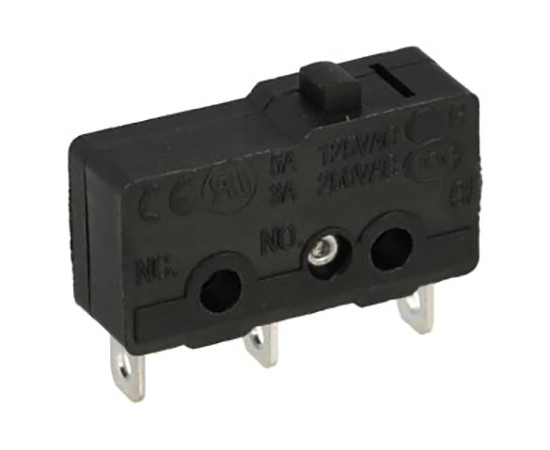

SS0500A micro switch Highly

Symbol Micros: PRZ SS0500A

526505

PRZ SS0500A

Contractor Symbol:

Case : Rys.SS0500A

Datasheet

Add to favourites

3A; 250VAC; 1,5N; 30mR; ON-(ON); SPDT; IP40; endurance: 100000 cycles; dimensions: 19,8x6,4x10,2mm

Parameters

Dimensions:	19,8x6,4x10,2mm
Contacts rating:	3A 250VAC
Force:	1,5N
Leads:	For soldering
Manufacturer:	HIGHLY
Terminal pitch:	7,3mm
Switching method:	ON-(ON)

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	19,8x6,4x10,2mm
Contacts rating:	3A 250VAC
Force:	1,5N
Leads:	For soldering
Manufacturer:	HIGHLY
Terminal pitch:	7,3mm
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
