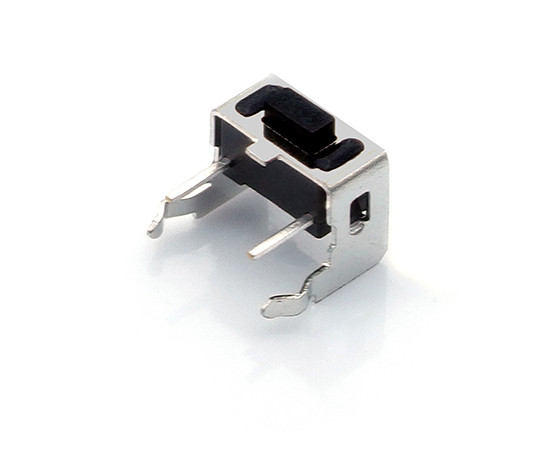

KAN3531B TACTRONIC Tact switch

Symbol Micros: PRZ Ts03v-043

14495

PRZ Ts03v-043

Contractor Symbol:

Case : Rys.TS-03V-043

Datasheet

Technical drawing Add to favourites

6x3.5mm H=4.3mm, 12V DC, 50 mA, life 50000 cycles,travel 0.25+/-0.1mm,operating temp.-20°C~70°C angeld, for PCB (THT), operating force 160c50gf, return force 40gf min.

Parameters

Height:	4,3mm
Dimensions:	6x3.5mm
Operating Force [gF]:	160gF
Manufacturer:	TACTRONIC
Mounting:	THT (Angled)

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-07-30

Quantity of pcs.: 8000

• Parameters

Height:	4,3mm
Dimensions:	6x3.5mm
Operating Force [gF]:	160gF
Manufacturer:	TACTRONIC
Mounting:	THT (Angled)
