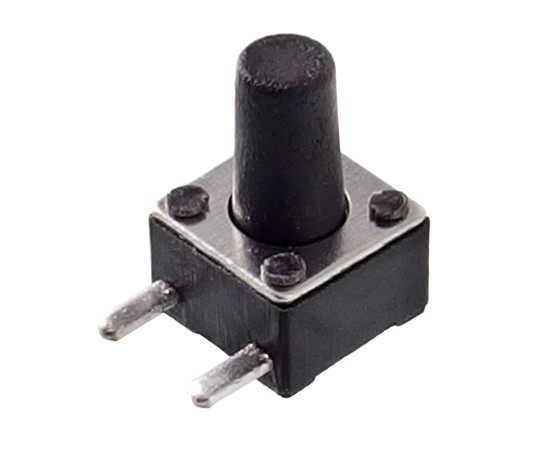

KAN4561 TACTRONIC Tact switch

Symbol Micros: PRZ Ts045vl-070

87407

PRZ Ts045vl-070

Contractor Symbol:

Case : Rys.Ts045vl-070

Datasheet

Technical drawing Add to favourites

4.5x4.5mm, H=5.0mm, 12V DC, 50 mA, life 50000 cycles,travel 0.25+/-0.1mm,operating temp.-20°C~70°C angled, for PCB (THT), operating force 160c50gf, return force 40gf min.

Parameters

Height:	7,0mm
Dimensions:	4.5x4.5mm
Operating Force [gF]:	160gF
Manufacturer:	TACTRONIC
Mounting:	THT (Angled)

All parameters

Manufacturer:: TACTRONIC Manufacturer part number: KAN4561-0701B RoHS Case style: Rys.Ts045vl-070 Datasheet

In stock:

7000 pcs.

Quantity of pcs.	10+	50+	200+	1000+	7000+
Net price (EUR)	0,1053	0,0420	0,0247	0,0182	0,0162

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/7000 Quantity (multiple: 10)

- +

Manufacturer:: TACTRONIC Manufacturer part number: KAN4561-0701B RoHS Case style: Rys.Ts045vl-070 Datasheet

In stock:

419 pcs.

Quantity of pcs.	10+	30+	100+	200+	500+
Net price (EUR)	0,1053	0,0520	0,0276	0,0210	0,0162

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 10)

- +

• Parameters

Height:	7,0mm
Dimensions:	4.5x4.5mm
Operating Force [gF]:	160gF
Manufacturer:	TACTRONIC
Mounting:	THT (Angled)
