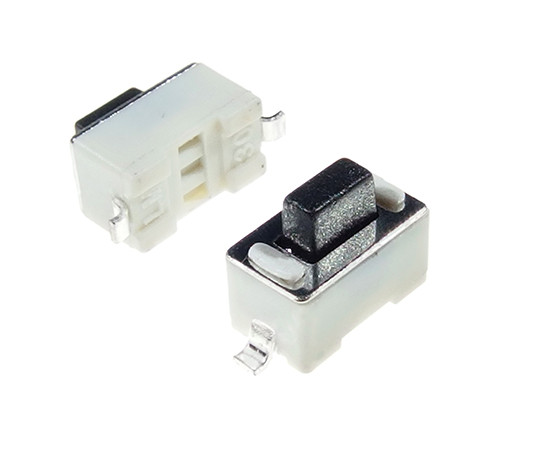

KAN3544C TACTRONIC Tact switch

Symbol Micros: PRZ Tss03-050t825

258438

PRZ Tss03-050t825

Contractor Symbol:

Case : Rys.Tss-03-050t8

Datasheet

Technical drawing Add to favourites

6x3.5mm H=5.0mm, 12V DC, 50 mA, life 50000 cycles, travel 0.25c0.1mm SMD, operating force 250c50gf, return force 60gF min. taped, pad 8.0mm

Parameters

Dimensions:	6x3.5mm
Height:	5,0mm
Operating Force [gF]:	250gF
Mechanical durability:	50000 cycles
Manufacturer:	TACTRONIC
Mounting:	SMD

All parameters

Manufacturer:: TACTRONIC Manufacturer part number: KAN3544C-0503C1 RoHS Case style: Rys.Tss-03-050t8 Datasheet

In stock:

6795 pcs.

Quantity of pcs.	5+	20+	100+	400+	1500+
Net price (EUR)	0,1987	0,1002	0,0600	0,0483	0,0441

Add to comparison tool Add inquiry (RFQ)

Packaging:
1500/3000 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	6x3.5mm
Height:	5,0mm
Operating Force [gF]:	250gF
Mechanical durability:	50000 cycles
Manufacturer:	TACTRONIC
Mounting:	SMD
