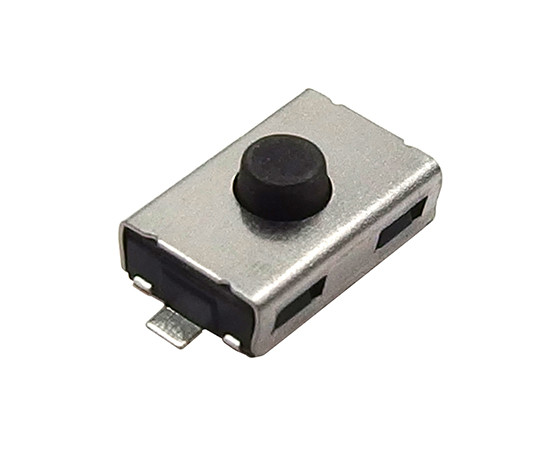

KAN0441F TACTRONIC Tact switch

Symbol Micros: PRZ Tss038-025t

147096

PRZ Tss038-025t

Contractor Symbol:

Case : Rys.TSS-038-025t

Datasheet

Technical drawing Add to favourites

6x3.8mm H=2.5mm, 12V DC, 50 mA, life 100000 cycles, travel 0.25c0.1mm SMD, operating force 160c50gf, taped

Parameters

Dimensions:	6.1x3.7mm
Height:	2,5mm
Operating Force [gF]:	160gF
Mechanical durability:	100000 cycles
Manufacturer:	TACTRONIC
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-06-15

Quantity of pcs.: 2000

• Parameters

Dimensions:	6.1x3.7mm
Height:	2,5mm
Operating Force [gF]:	160gF
Mechanical durability:	100000 cycles
Manufacturer:	TACTRONIC
Mounting:	SMD
