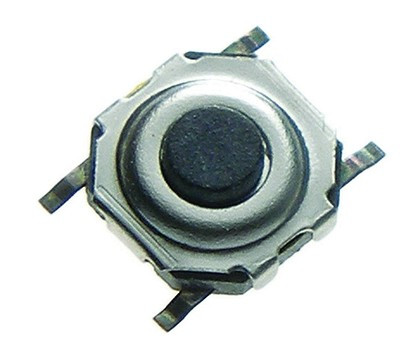

Tss05-015 Tact switch

Symbol Micros: PRZ Tss05-015

12885

PRZ Tss05-015

Contractor Symbol:

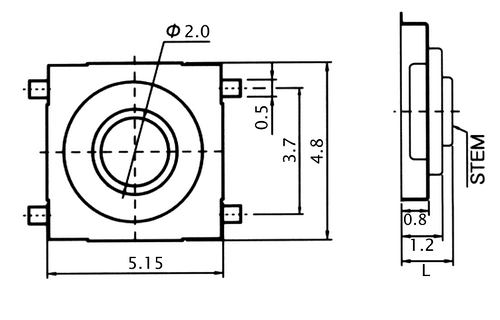

Case : Rys.TSS-05-015

Datasheet

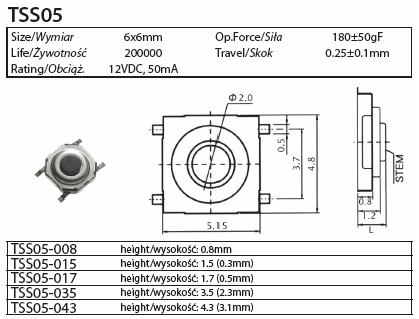

Technical drawing Add to favourites

5.2x5.2mm, H= 1.5mm (0.3mm), 12V DC, 50 mA, life 200000 cycles, travel 0.25c0.1mm SMD, operating force 180c50gf

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	5.2x5.2mm
Height:	1,5mm
Operating Force [gF]:	180gF
Mechanical durability:	200000 cycles
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	5.2x5.2mm
Height:	1,5mm
Operating Force [gF]:	180gF
Mechanical durability:	200000 cycles
Mounting:	SMD
