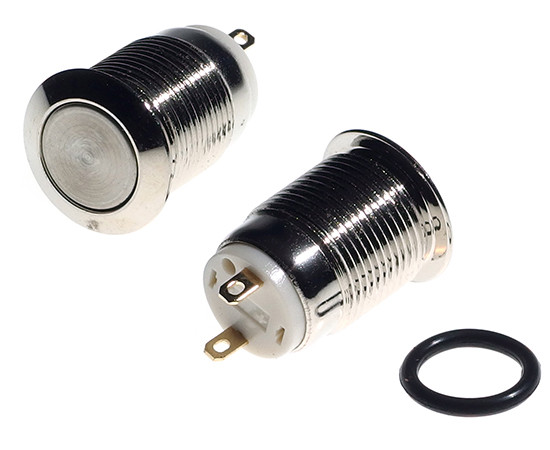

Vandal proof push button switch; W12F11/C II

Symbol Micros: PRZ W12F11/C II.

396706

PRZ W12F11/C II.

Contractor Symbol:

Case : Rys.W12F11/C II

Datasheet

Technical drawing Add to favourites

12mm; momentary; 1NO; copper; pin terminals; front shape-flat; 1A; 250VAC; IP67; IK08; electrical life: 50.000 cycles; operating temp: -20~55°C

Parameters

Contacts rating:	1A/250VAC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Flat
IP rating:	IP65
Contacts configuration:	N/A
Mounting hole diameter:	12mm

All parameters

Manufacturer:: FILN Manufacturer part number:   Case style: Rys.W12F11/C II

In stock:

11 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,4847	1,1333	0,9378	0,8215	0,7819

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

Manufacturer:: FILN Manufacturer part number:   Case style: Rys.W12F11/C II

In stock:

100 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,4544	1,1100	0,9192	0,8052	0,7656

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	1A/250VAC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Flat
IP rating:	IP65
Contacts configuration:	N/A
Mounting hole diameter:	12mm
Leads:	For soldering
Illumination:	N/A
Illimination voltage:	N/A
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
