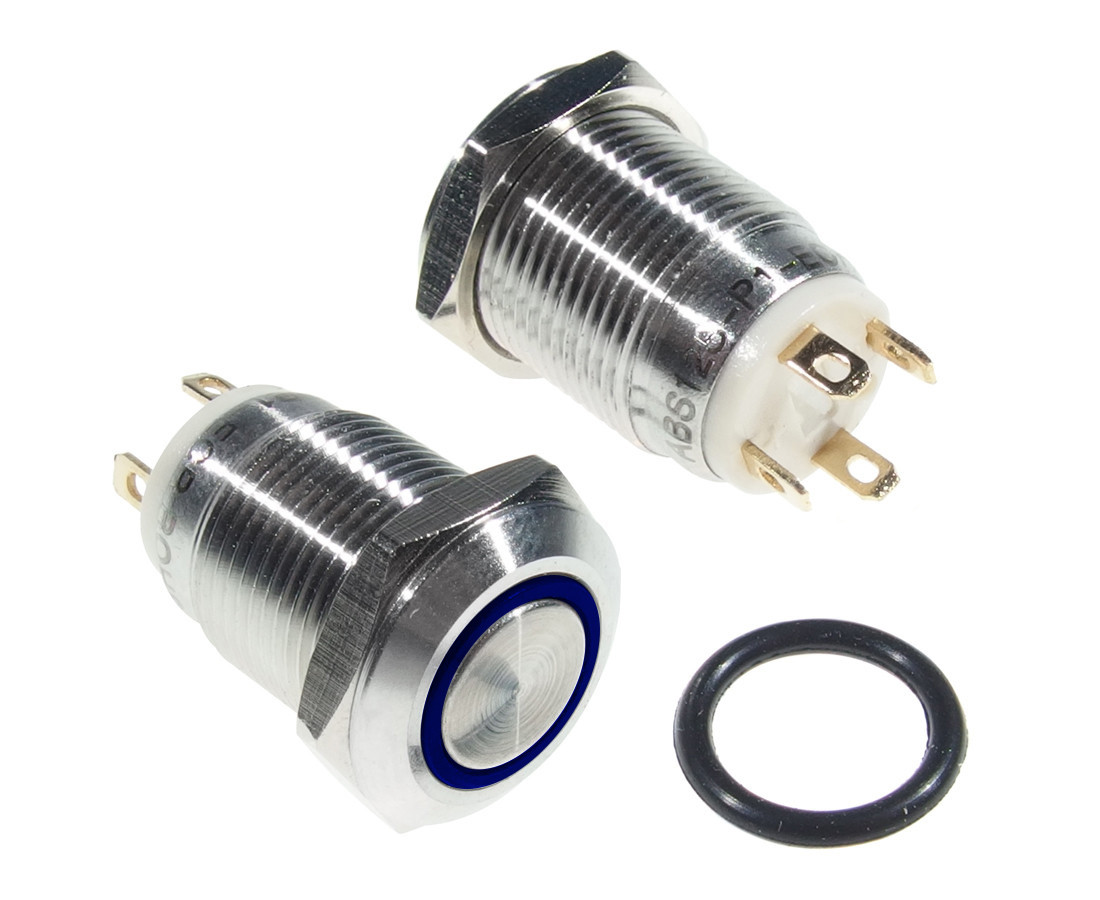

Vandal proof push button switch; W12F11EB12/S

Symbol Micros: PRZ W12F11EB12/S

111289

PRZ W12F11EB12/S

Contractor Symbol:

Case : Rys.W12F11EB12/S

Datasheet

Technical drawing Add to favourites

12mm; momentary; 1NO; stainless steel; pin terminals; front shape-flat; illuminated LED 12V; ring; blue; 3A/250VAC; IP67; IK10; electrical life: 100.000 cycle

Parameters

Contacts rating:	3A/250VAC
Backlight colour:	Blue
Switching method:	1NO
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	12mm

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-04-07

Quantity of pcs.: 50

• Parameters

Contacts rating:	3A/250VAC
Backlight colour:	Blue
Switching method:	1NO
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	12mm
Leads:	For soldering
Illumination:	Edge
Illimination voltage:	12V
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
