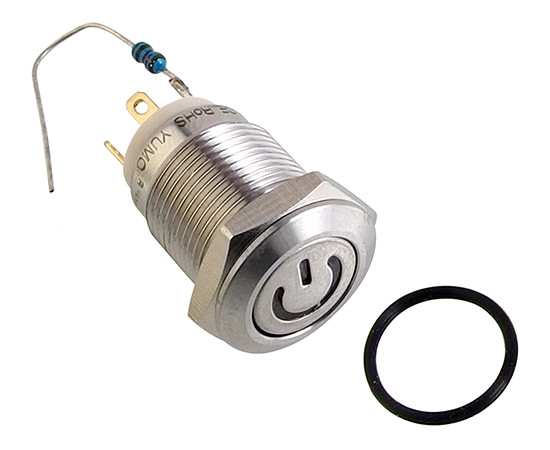

Vandal proof push button switch; W12F11ER12/S power

Symbol Micros: PRZ W12F11ER12/S power

114299

PRZ W12F11ER12/S power

Contractor Symbol:

Case : Rys.W12F11ER12/S power

Datasheet

Technical drawing Add to favourites

12mm; momentary; 1NO; brass; pin terminals; front shape-flat; illuminated LED 12V; ring+power red; 2A; 36VDC; IP67; electrical life: 40.000 cycles

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts rating:	2A/36VDC
Backlight colour:	Red
Switching method:	1NO
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Leads:	For soldering

All parameters

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W12F11ER12/S power

In stock:

85 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,9057	2,4147	2,1258	1,9449	1,8745

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	2A/36VDC
Backlight colour:	Red
Switching method:	1NO
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Leads:	For soldering
Mounting hole diameter:	12mm
Illumination:	Edge
Illimination voltage:	12V
Switch operation:	Momentary
Button marking:	Power
Manufacturer:	N/A
Type of switch:	Vandal-resistant
