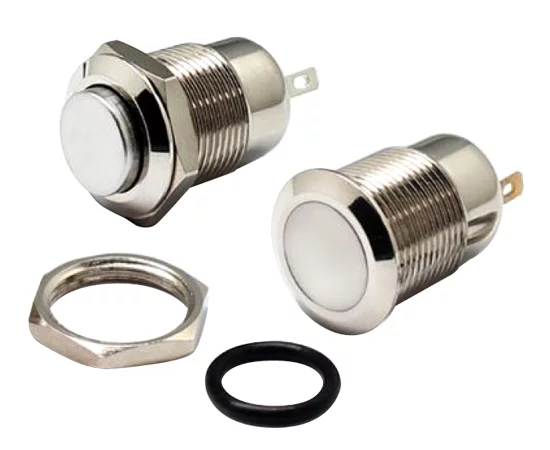

Vandal proof push button switch; W12F21/C

Symbol Micros: PRZ W12F21/C.

345165

PRZ W12F21/C.

Contractor Symbol:

Case : Rys.W12F21/C

Datasheet

Technical drawing Add to favourites

12mm; alternate; 1NO1NC; copper; pin terminals; front shape-flat; 1A; 250VAC; IP65; IK08; electrical life: 50.000 cycles; operating temp: -25~55°C

Parameters

Contacts rating:	1A/250VAC
Backlight colour:	N/A
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP65
Contacts configuration:	N/A
Leads:	For soldering

All parameters

Manufacturer:: FILN Manufacturer part number:   Case style: Rys.W12F21/C

In stock:

140 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,0501	1,7192	1,5298	1,4099	1,3667

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	1A/250VAC
Backlight colour:	N/A
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP65
Contacts configuration:	N/A
Leads:	For soldering
Mounting hole diameter:	12mm
Illumination:	N/A
Illimination voltage:	N/A
Switch operation:	Alternate
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
