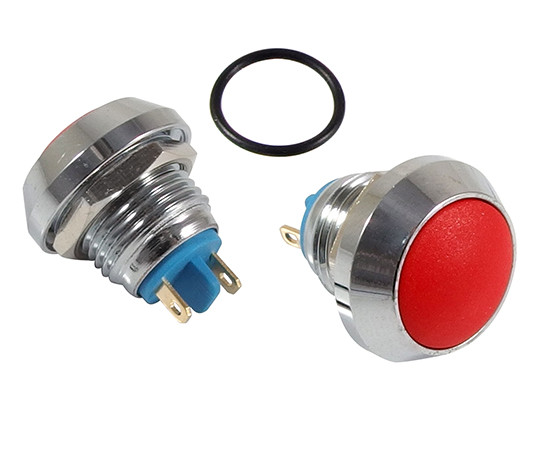

Vandal proof push button switch; W12P10R/Cr

Symbol Micros: PRZ W12P10R/Cr

122209

PRZ W12P10R/Cr

Contractor Symbol:

Case : Rys.W12P10R/Cr

Datasheet

Technical drawing Add to favourites

12mm; momentary; 1NO; brass; pin terminals; red; front shape-ball; 2A; 36VDC; IP67; IK08; electrical life: 40.000 cycles

Parameters

Contacts rating:	3A/250VAC
Backlight colour:	N/A
Switching method:	1NO1NC
Button shape:	Convex
IP rating:	IP65
Contacts configuration:	N/A
Mounting hole diameter:	12mm

All parameters

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W12P10R/Cr

In stock:

37 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,1966	1,8406	1,6382	1,5102	1,4636

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	3A/250VAC
Backlight colour:	N/A
Switching method:	1NO1NC
Button shape:	Convex
IP rating:	IP65
Contacts configuration:	N/A
Mounting hole diameter:	12mm
Leads:	For soldering
Illumination:	N/A
Illimination voltage:	N/A
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
