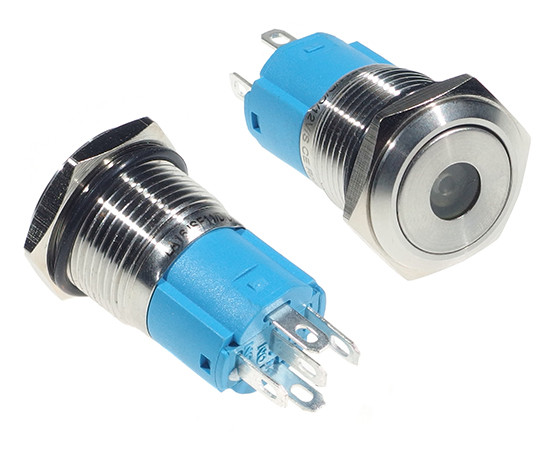

Vandal proof push button switch; W16F11DO12/S

Symbol Micros: PRZ W16F11DO12/Sz

128118

PRZ W16F11DO12/Sz

Contractor Symbol:

Case : Rys.W16F11DO12/S

Datasheet

Technical drawing Add to favourites

16mm; momentary; 1NO1NC; stainless steel; pin terminals; front shape-flat; illuminated LED 12V; dot; orange; 3A; IP67; electrical life: 40.000h

Parameters

Backlight colour:	Orange
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	16mm
Leads:	For soldering

All parameters

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W16F11DO12/S

In stock:

1 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	4,4950	3,9950	3,6955	3,5469	3,4573

Add to comparison tool Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W16F11DO12/S

In stock:

39 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	4,4950	4,0115	3,7191	3,5493	3,4573

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	Orange
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	16mm
Leads:	For soldering
Illumination:	Point
Illimination voltage:	12V
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
