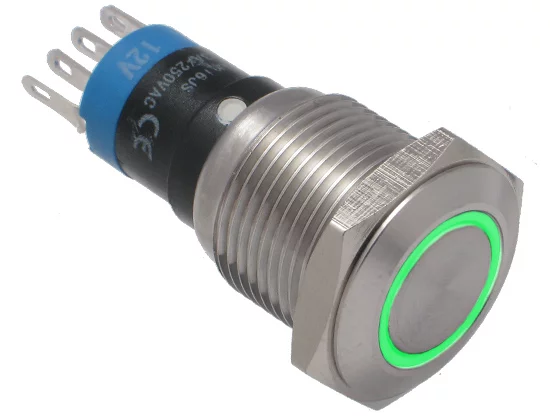

Vandal proof push button switch; W16F22EG12/S

Symbol Micros: PRZ W16F22EG12/S

82015

PRZ W16F22EG12/S

Contractor Symbol:

Case : Rys.W16F22EG12/S

Datasheet

Technical drawing Add to favourites

16mm; alternate; 2NO2NC; stainless steel; pin terminals; front shape-flat; illuminated LED 12V; ring; green; 3A; IP67; electrical life: 40.000h

Parameters

Backlight colour:	Green
Switching method:	2NO2NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	16mm
Leads:	For soldering

All parameters

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W16F22EG12/S

In stock:

15 pcs.

Quantity of pcs.	1+	3+	10+	40+	120+
Net price (EUR)	6,2995	5,8084	5,5059	5,3267	5,2499

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
40 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	Green
Switching method:	2NO2NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	16mm
Leads:	For soldering
Illumination:	Edge
Illimination voltage:	12V
Switch operation:	Alternate
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
