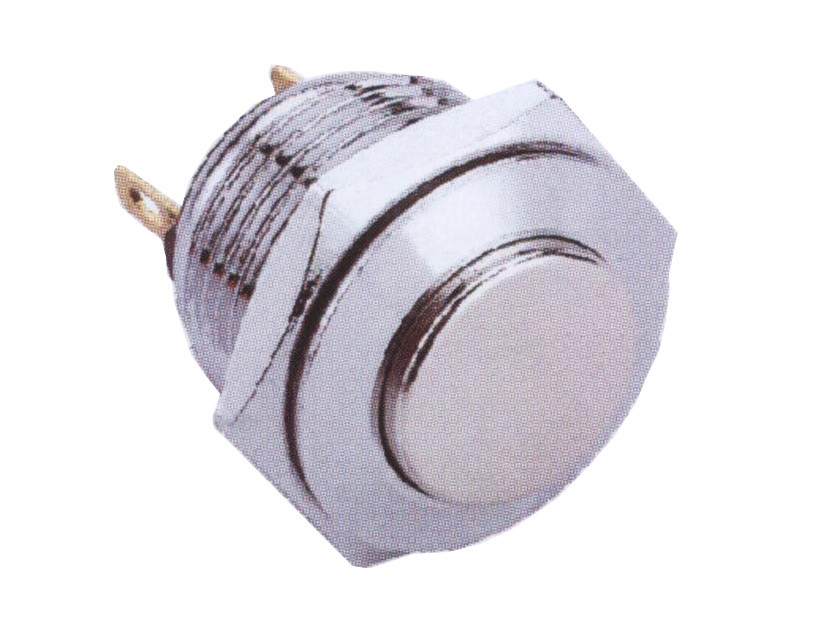

Vandal proof push button switch; W16H10R/C

Symbol Micros: PRZ W16H10R/C

62807

PRZ W16H10R/C

Contractor Symbol:

Case : Rys.W16H10R/C

Datasheet

Technical drawing Add to favourites

16mm; momentary; 1NO; brass; pin terminals; front shape-high; round; 3A; 250VAC; IP67; electrical life: 50.000 cycles

Parameters

Contacts rating:	3A/250VAC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Convex
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	16mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	3A/250VAC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Convex
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	16mm
Leads:	For soldering
Illumination:	N/A
Illimination voltage:	N/A
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
