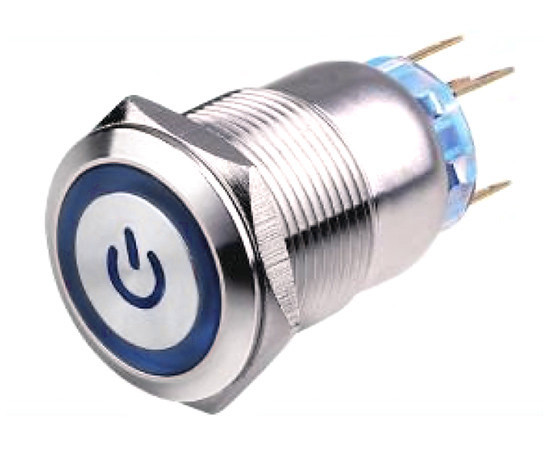

Vandal proof push button switch; W19F11EB12/S power

Symbol Micros: PRZ W19F11EB12/S power

114301

PRZ W19F11EB12/S power

Contractor Symbol:

Case : Rys.W19F11EB12/S power

Datasheet

Technical drawing Add to favourites

19mm; momentary; 1NO1NC; stainless steel; pin terminals; front shape-flat; illuminated LED 12V; ring; blue; power symbol 3A; IP67; electrical life: 40.000h

Parameters

Backlight colour:	Blue
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	19mm
Leads:	For soldering

All parameters

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W19F11EB12/S power

In stock:

0 pcs.

Quantity of pcs.	1+	3+	10+	40+	120+
Net price (EUR)	4,9940	4,6030	4,3633	4,2214	4,1608

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W19F11EB12/S power

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	40+	100+
Net price (EUR)	5,7433	5,1522	4,9172	4,8473	4,7868

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	Blue
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	19mm
Leads:	For soldering
Illumination:	Edge
Illimination voltage:	12V
Switch operation:	Momentary
Button marking:	Power
Manufacturer:	N/A
Type of switch:	Vandal-resistant
