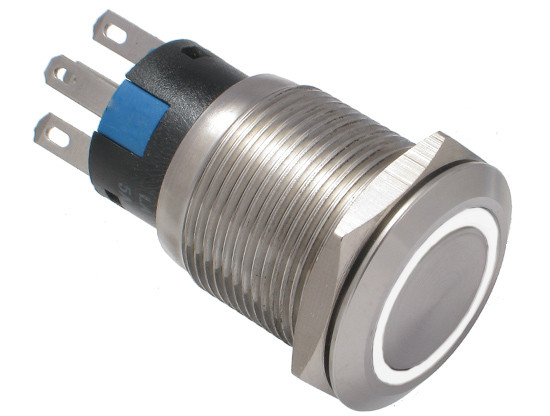

Vandal proof push button switch; W19F11EW12/S

Symbol Micros: PRZ W19F11EW12/S

78861

PRZ W19F11EW12/S

Contractor Symbol:

Case : Rys.W19F11EW12/S

Datasheet

Technical drawing Add to favourites

19mm; momentary; 1NO1NC; stainless steel; pin terminals; front shape-flat; illuminated LED 12V; ring; white; 3A; IP67; electrical life: 40.000h

Parameters

Backlight colour:	White
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	19mm
Leads:	For soldering

All parameters

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W19F11EW12/S

In stock:

49 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	5,0019	4,4649	4,1389	3,9490	3,8481

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W19F11EW12/S

In stock:

12 pcs.

Quantity of pcs.	1+	4+	12+	36+	120+
Net price (EUR)	5,0089	4,3593	4,0920	3,9419	3,8528

Add to comparison tool Add inquiry (RFQ)

Packaging:
12 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	White
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	19mm
Leads:	For soldering
Illumination:	Edge
Illimination voltage:	12V
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
