R7A310R0S-R SAB

Symbol Micros: PRZ Z7DB-0s

87634

PRZ Z7DB-0s

Contractor Symbol:

Case : Rys.Z7DB-0s

Datasheet

Technical drawing Add to favourites

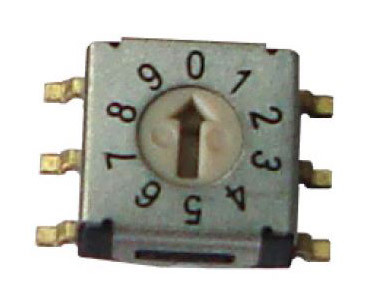

Rotary Coded Switch DEC/BCD, 10 positions, straight, flat, SMT,7.2x7.2x2.9mm 3+3 pin, 50VDC, 100mA, life 10000 steps oper. temp. -40 +85C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	7,2x7,2x2,9mm
Type of code:	DEC/BCD
Rotor height:	Flat
Number of positions:	10
Type of pin configuration:	3+3
Mounting:	SMD
Result (actual/inverted):	Actual result

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: MSDR-10S RoHS Case style: Rys.Z7DB-0s

In stock:

2 pcs.

Quantity of pcs.	1+	5+	20+	50+	200+
Net price (EUR)	2,0859	1,6513	1,4892	1,4352	1,3906

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	7,2x7,2x2,9mm
Type of code:	DEC/BCD
Rotor height:	Flat
Number of positions:	10
Type of pin configuration:	3+3
Mounting:	SMD
Result (actual/inverted):	Actual result
Spatial orientation:	Straight
