R9310C7H SAB

Symbol Micros: PRZ ZDB-7C

53681

PRZ ZDB-7C

Contractor Symbol:

Case : Rys.ZDB-7C

Datasheet

Technical drawing Add to favourites

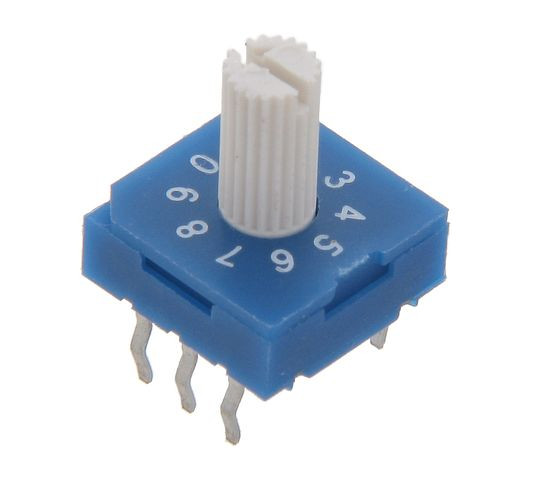

Rotary Coded Switch DEC/BCD, 10 positions, straight, w/knob 7mm, 10x10x4.6mm 3+3 pin, 50VDC, 100mA, life 20000 steps oper. temp. -40 +85C, complementary

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	10x10x4,6mm
Type of code:	DEC/BCD
Rotor height:	7mm Knob
Number of positions:	10
Type of pin configuration:	3+3
Mounting:	For printing
Result (actual/inverted):	Inverted result

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	10x10x4,6mm
Type of code:	DEC/BCD
Rotor height:	7mm Knob
Number of positions:	10
Type of pin configuration:	3+3
Mounting:	For printing
Result (actual/inverted):	Inverted result
Spatial orientation:	Straight
