R9316C7H SAB

Symbol Micros: PRZ ZHB-7C

53682

PRZ ZHB-7C

Contractor Symbol:

Case : Rys.ZHB-7C

Datasheet

Technical drawing Add to favourites

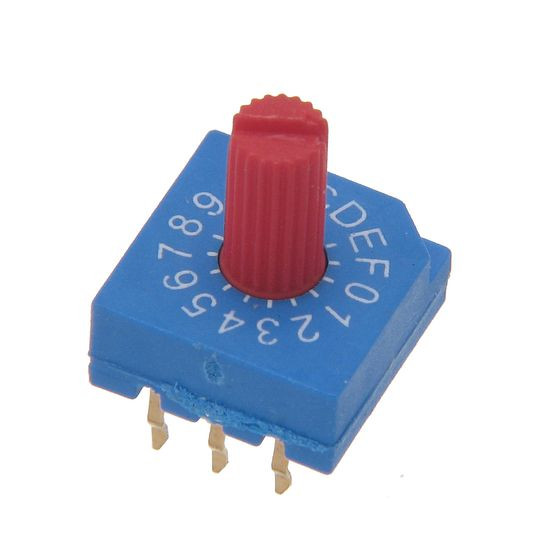

Rotary Coded Switch HEX/BCD, 16 positions, straight, w/knob 7mm, 10x10x4.6mm, 3+3 pin, 50VDC, 100mA, life 20000 steps oper. temp. -40 +85C, complementary

Parameters

Dimensions:	10x10x4,6mm
Type of code:	HEX/BCD
Rotor height:	7mm Knob
Number of positions:	16
Type of pin configuration:	3+3
Mounting:	For printing
Result (actual/inverted):	Inverted result

All parameters

Manufacturer:: SAB Manufacturer part number: R9316C7H RoHS Case style: Rys.ZHB-7C

In stock:

340 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,5849	1,2636	1,0814	0,9735	0,9327

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/2000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-04-15

Quantity of pcs.: 200

• Parameters

Dimensions:	10x10x4,6mm
Type of code:	HEX/BCD
Rotor height:	7mm Knob
Number of positions:	16
Type of pin configuration:	3+3
Mounting:	For printing
Result (actual/inverted):	Inverted result
Spatial orientation:	Straight
