Wire wound resistor; 22R

Symbol Micros: R dr250/0022.00j

14458

R dr250/0022.00j

Contractor Symbol:

Case : Rys.REZdr25W

Datasheet

Technical drawing Add to favourites

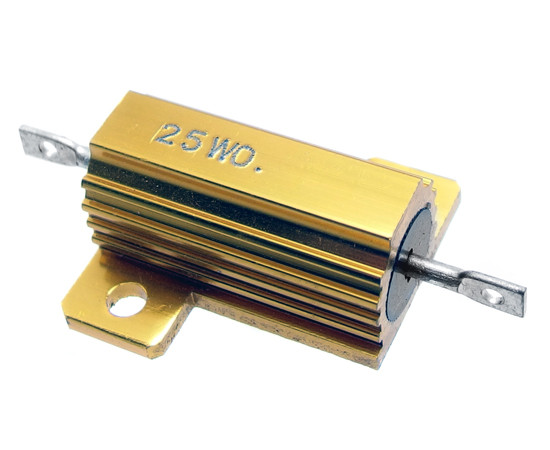

Wire wound resistor; 22R; 5%; 25W; with heatsink; screwed; dimensions: 28x27x14mm

Parameters

Resistance:	22 Ohm
Power:	25W
Tolerance:	5%
Mounting:	Screw
Dimensions:	28x27x14mm
Resistor type:	Wire-wound

All parameters

Manufacturer:: TCO Manufacturer part number: AH 25W 22R J RoHS Case style: Rys.REZdr25W

In stock:

70 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	1,6033	1,2778	1,0936	0,9931	0,9428

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

Manufacturer:: TCO Manufacturer part number: AH 25W 22R J RoHS Case style: Rys.REZdr25W

In stock:

6 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,6033	1,1893	1,0385	0,9667	0,9428

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Resistance:	22 Ohm
Power:	25W
Tolerance:	5%
Mounting:	Screw
Dimensions:	28x27x14mm
Resistor type:	Wire-wound
