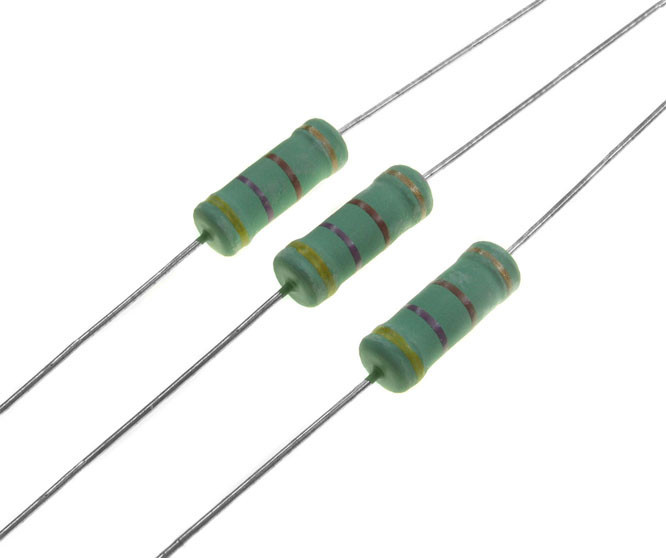

Wire wound resistor; 10R

Symbol Micros: R dr30/0010.00j

21077

R dr30/0010.00j

Contractor Symbol:

Case : Rys.REZDR3W

Datasheet

Technical drawing Add to favourites

wire wound resistor; 10R; 5%; 3W; 0515; body dimensions: 5x15mm; leads dimensions: 0,7x23mm

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Resistance:	10 Ohm
Power:	3,0W
Tolerance:	5%
Body dimensions:	5x15mm
Leads dimensions:	0,7x23mm
Temperature coefficient:	300ppm/°C
Mounting:	THT

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	10 Ohm
Power:	3,0W
Tolerance:	5%
Body dimensions:	5x15mm
Leads dimensions:	0,7x23mm
Temperature coefficient:	300ppm/°C
Mounting:	THT
