AN003M (replacement for: GSM-ANT-3)
Symbol Micros:
RF AN003M
Case : Rys.AN003

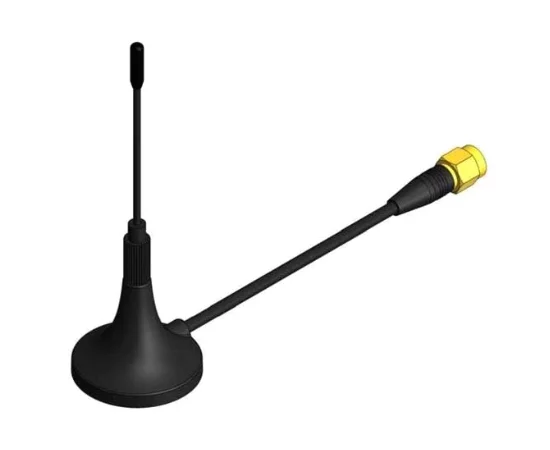

GSM Antenna, 824÷960/1710÷2170MHz, gain 2.0dBi, dimensions L×Φ 89×29.4mm SMA straight male connector, magnet mount, RG174 3m cable
Parameters
| Dimensions: | 89x29.4mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Rod |
| Mounting: | Magnet |
Manufacturer:: import
Manufacturer part number: AN003M RoHS
Case style: Rys.AN003
In stock:
50 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 50+ | 200+ |
|---|---|---|---|---|---|
| Net price (EUR) | 2,9439 | 2,5441 | 2,3079 | 2,1583 | 2,1021 |
| Dimensions: | 89x29.4mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Rod |
| Mounting: | Magnet |
| Type of connector: | Straight male SMA |
| Cable type: | RG174 |
| Cable length: | 3m |
| Polarisation: | Linear |
| Impedance: | 50Ohm |
Detailed description
Product type: GSM Antenna
Frequency: 824÷960/1710÷2170MHz
Gain: 2.0dBi
External dimensions: L×Φ 89×29.4mm
Connector type: SMA male straight
Mounting: magnet
Cable: RG174 3m
Polarization: linear
V.S.W.R: <2.5
Impedance: 50Ω
Operating temperature: -40÷85°C
