AN023 (replacement for: GSM-ANT023)
Symbol Micros:
RF AN023
Case : Rys.AN023

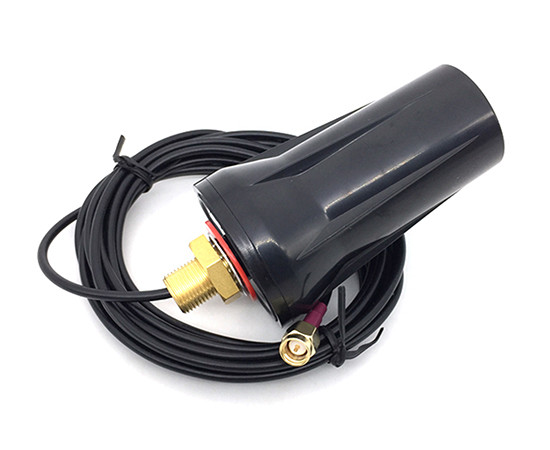

GSM Antenna, 824÷960/1710÷2170MHz, gain 2.0dBi, dimensions L×Φ75.4×45.2mm SMA straight male connector, screw mount, RG58 3m cable
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Dimensions: | 75,4x45,2mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Pipe |
| Type of connector: | Straight male SMA |
Manufacturer:: import
Manufacturer part number: AN023 RoHS
Case style: Rys.AN023
In stock:
10 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 30+ | 100+ |
|---|---|---|---|---|---|
| Net price (EUR) | 4,2674 | 3,7935 | 3,5105 | 3,3679 | 3,2828 |
| Dimensions: | 75,4x45,2mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Pipe |
| Type of connector: | Straight male SMA |
| Mounting: | Screw |
| Cable type: | RG58 |
| Polarisation: | Linear |
| Cable length: | 3m |
| Impedance: | 50Ohm |
Detailed description
Typ produktu: Antena GSM
Częstotliwość: 824÷960/1710÷2170MHz
Zysk energetyczny: 2.0dBi
Wymiary zewnętrzne: L×Φ 75.4×45.2mm
Typ złącza: SMA męskie proste
Montaż: przykręcany
Przewód: RG58 3m
Polaryzacja: liniowa
V.S.W.R: <2.0
Impedancja: 50Ω
Temperatura pracy: -40÷85°C
