AN027 (replacement for: GSM-ANT027)
Symbol Micros:
RF AN027
Case : Rys.AN027

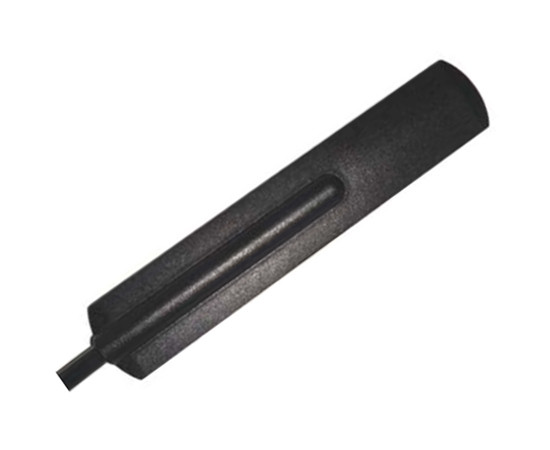

GSM Antenna, 824÷960/1710÷2170/2400÷2500MHz, gain 2.0dBi, dim. 115.5×21.7×5.2mm SMA straight male connector, adhesive mount, RG58 3m cable
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Dimensions: | 115,5x21,7x5,2mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Flattened cylinder |
| Type of connector: | Straight male SMA |
Manufacturer:: import
Manufacturer part number: AN027 RoHS
Case style: Rys.AN027
In stock:
20 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 30+ | 100+ |
|---|---|---|---|---|---|
| Net price (EUR) | 5,5976 | 4,7120 | 4,1788 | 3,9157 | 3,7560 |
| Dimensions: | 115,5x21,7x5,2mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Flattened cylinder |
| Type of connector: | Straight male SMA |
| Mounting: | Adhesive |
| Cable type: | RG58 |
| Polarisation: | Linear |
| Cable length: | 3m |
| Impedance: | 50Ohm |
Detailed description
Typ produktu: Antena GSM
Częstotliwość: 824÷960/1710÷2170/2400÷2500MHz
Zysk energetyczny: 2.0dBi
Wymiary zewnętrzne: 115.5×21.7×5.2mm
Typ złącza: SMA męskie proste
Montaż: przyklejany
Przewód: RG58 3m
Polaryzacja: liniowa
V.S.W.R: <2.0
Impedancja: 50Ω
Temperatura pracy: -40÷85°C
