AN058 (replacement for: GSM-ANT058)
Symbol Micros:
RF AN058
Case : Rys.AN058

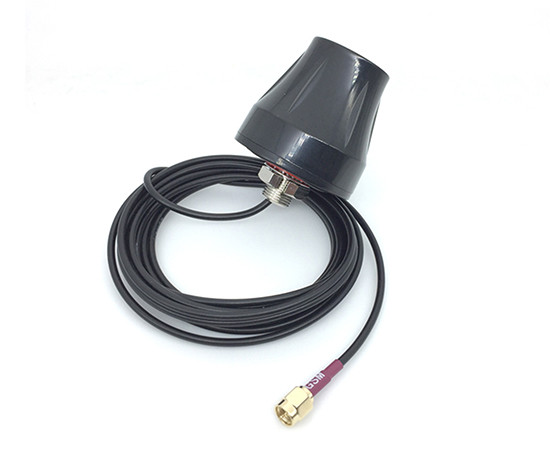

GSM Antenna, 824÷960/1710÷2170MHz, gain 2.0dBi, dimensions L×Φ48×50mm SMA straight male connector, screw mount, RG174 3m cable
Parameters
| Dimensions: | 48x50mm |
| Frequency range: | 824~960/1710~1990MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Truncated cone |
| Mounting: | Screw |
Manufacturer:: import
Manufacturer part number: AN058 RoHS
Case style: Rys.AN058
In stock:
10 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 30+ | 100+ |
|---|---|---|---|---|---|
| Net price (EUR) | 5,1304 | 4,5609 | 4,2187 | 4,0488 | 3,9459 |
| Dimensions: | 48x50mm |
| Frequency range: | 824~960/1710~1990MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Truncated cone |
| Mounting: | Screw |
| Type of connector: | Straight male SMA |
| Cable type: | RG174 |
| Cable length: | 3m |
| Polarisation: | Linear |
| Impedance: | 50Ohm |
Detailed description
Product type: GSM Antenna
Frequency: 824÷960/1710÷2170MHz
Gain: 2.0dBi
External dimensions: L×Φ 48×50mm
Connector type: SMA male straight
Mounting: screw-mounted
Cable: RG174 3m
Polarization: linear
V.S.W.R: <2.0
Impedance: 50Ω
Operating temperature: -40÷85°C
