AN059 (replacement for: GSM-ANT059)
Symbol Micros:
RF AN059
Case : Rys.AN059

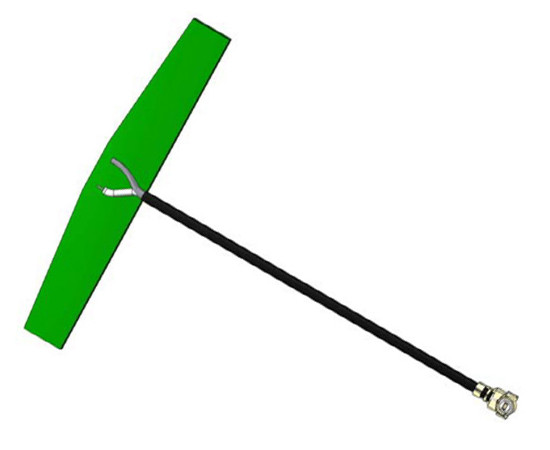

GSM Antenna, 824÷960/1710÷1990MHz, gain 2.0dBi, dimensions 47×7.6×1.2mm IPEX connector, adhesive mount, RF1.13 10cm cable
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Dimensions: | 47x7,6x1,2mm |
| Frequency range: | 824~960/1710~1990MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | PCB |
| Type of connector: | IPEX |
Manufacturer:: import
Manufacturer part number: AN059 RoHS
Case style: Rys.AN059
In stock:
24 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 50+ | 200+ |
|---|---|---|---|---|---|
| Net price (EUR) | 1,8768 | 1,4963 | 1,2802 | 1,1510 | 1,1040 |
| Dimensions: | 47x7,6x1,2mm |
| Frequency range: | 824~960/1710~1990MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | PCB |
| Type of connector: | IPEX |
| Mounting: | Adhesive |
| Cable type: | RF1.13/RF1.37 |
| Polarisation: | Linear |
| Cable length: | 0,1m |
| Impedance: | 50Ohm |
Detailed description
Typ produktu: Antena GSM
Częstotliwość: 824÷960/1710÷1990MHz
Zysk energetyczny: 2.0dBi
Wymiary zewnętrzne: 47×7.6×1.2mm
Typ złącza: IPEX
Montaż: przyklejany
Przewód: RF1.13 10cm
Polaryzacja: liniowa
V.S.W.R: <3.0
Impedancja: 50Ω
Temperatura pracy: -40÷85°C
