AN086 (replacement for: GSM-ANT086)
Symbol Micros:
RF AN086
Case : Rys.AN086

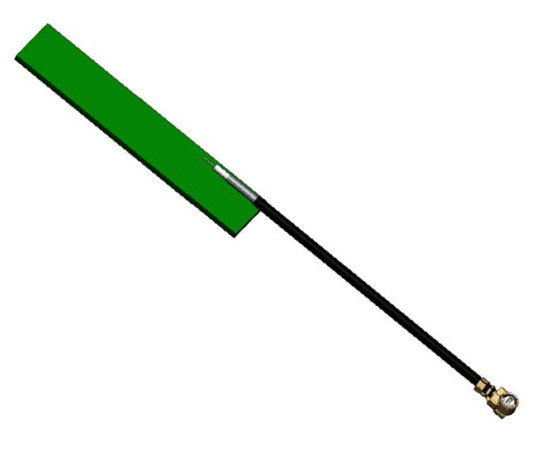

GSM Antenna, 824÷960/1710÷2170MHz, gain 0.0dBi, dimensions 37×7×1mm IPEX connector, adhesive mount, RF1.13 10cm cable
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Dimensions: | 37x7x1mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 0,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | PCB |
| Type of connector: | IPEX |
Manufacturer:: import
Manufacturer part number: AN086 RoHS
Case style: Rys.AN086
In stock:
19 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 50+ | 200+ |
|---|---|---|---|---|---|
| Net price (EUR) | 1,8815 | 1,5010 | 1,2849 | 1,1533 | 1,1064 |
| Dimensions: | 37x7x1mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 0,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | PCB |
| Type of connector: | IPEX |
| Mounting: | Adhesive |
| Cable type: | RF1.13/RF1.37 |
| Polarisation: | Linear |
| Cable length: | 0,1m |
| Impedance: | 50Ohm |
Detailed description
Typ produktu: Antena GSM
Częstotliwość: 824÷960/1710÷2170MHz
Zysk energetyczny: 0.0dBi
Wymiary zewnętrzne: 37×7×1mm
Typ złącza: IPEX
Montaż: przyklejany
Przewód: RF1.13 10cm
Polaryzacja: liniowa
V.S.W.R: <2.0
Impedancja: 50Ω
Temperatura pracy: -40÷85°C
