AN1003 Chip Antenna Rainsun

Symbol Micros: RF AN1003

97529

RF AN1003

Contractor Symbol:

Case : RF AN1003

Datasheet

Technical drawing Add to favourites

Chip Antenna 2.45GHz & 5÷6GHz

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	10,3x3x1,6mm
Frequency range:	2,45-6GHz
Peak gain:	1,0dBi
Manufacturer:	RainSun
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD
Polarisation:	Linear

All parameters

Manufacturer:: RainSun Manufacturer part number: AN1003 2.45GHz & 5-6GHz RoHS Case style: RF AN1003 Datasheet

In stock:

84 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,1750	0,7810	0,6474	0,5829	0,5599

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	10,3x3x1,6mm
Frequency range:	2,45-6GHz
Peak gain:	1,0dBi
Manufacturer:	RainSun
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD
Polarisation:	Linear
Impedance:	50Ohm

Detailed description

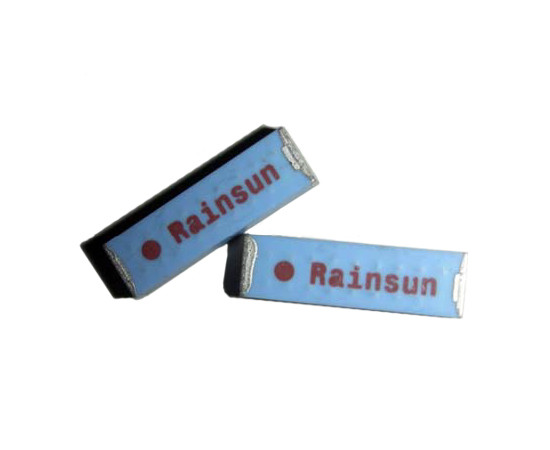

Chip Antenna AN1003

Manufacturer: RAINSUN
Frequency range: 2.45GHz & 5~6GHz
Gain: 1dBi
Mounting: SMD
Impedance: 50Ω
Polarisation: linear
Operation temperature: -40 ~ +85 °C
Dimensions: 10.3mm(L)X3.0mm(W)X1.6mm(H)
