AN108L (replacement for: WIFI-ANT108)
Symbol Micros:
RF AN108L
Case : Rys.AN108

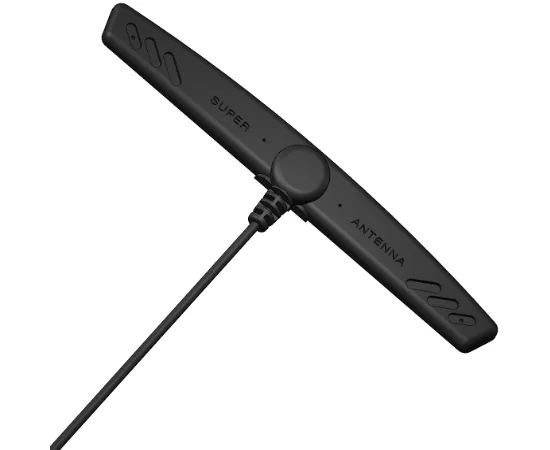

WiFi/Bluetooth Antenna, 2400÷2483.5MHz, gain 2.0dBi, dimensions 126×16.2×8.8mm SMA straight male connector, adhesive mount, RG174 3m cable
Parameters
| Dimensions: | 126x16,2x8,8mm |
| Frequency range: | 2400~2483.5MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | Wi-Fi/Bluetooth |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | PCB |
| Mounting: | Adhesive |
Manufacturer:: import
Manufacturer part number: AN108L RoHS
Case style: Rys.AN108
In stock:
8 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 30+ | 100+ |
|---|---|---|---|---|---|
| Net price (EUR) | 3,1898 | 2,7447 | 2,4815 | 2,3546 | 2,2781 |
| Dimensions: | 126x16,2x8,8mm |
| Frequency range: | 2400~2483.5MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | Wi-Fi/Bluetooth |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | PCB |
| Mounting: | Adhesive |
| Type of connector: | Straight male SMA |
| Cable type: | RG174 |
| Cable length: | 3m |
| Polarisation: | Linear |
| Impedance: | 50Ohm |
Detailed description
Product type: WiFi/Bluetooth Antenna
Frequency: 2400÷2483.5MHz
Gain: 2.0dBi
External dimensions: 126×16.2×8.8mm
Connector type: SMA male straight
Mounting: adhesive
Cable: RG174 3m
Polarization: linear
V.S.W.R: <2.5
Impedance: 50Ω
Operating temperature: -40÷85°C
