AN197M.WIFI

Symbol Micros: RF AN24HD-1301sm

99770

RF AN24HD-1301sm

Contractor Symbol:

Case : Rys.AN2400-1301SM

Datasheet

Technical drawing Add to favourites

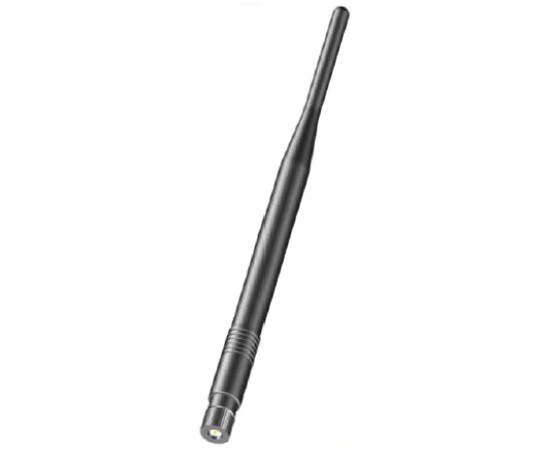

WiFi/Bluetooth Antenna, Omni-Directional, 2.4÷2.5GHz, gain 5dBi, L×Φ195×13mm SMA straight male connector

Product description

Parameters

Dimensions:	195x13mm
Frequency range:	2,4~2,5GHz
Peak gain:	5,0dBi
Antenna type:	Wi-Fi/Bluetooth
Operating temperature (range):	-40°C ~ 65°C
Antenna shape:	Rod
Type of connector:	Straight male SMA

All parameters

Manufacturer:: import Manufacturer part number: AN197M WiFi RoHS Case style: Rys.AN2400-1301SM

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	20+	100+
Net price (EUR)	2,3678	1,9739	1,7475	1,6721	1,5777

Add to comparison tool Add inquiry (RFQ)

Packaging:
10/20 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	195x13mm
Frequency range:	2,4~2,5GHz
Peak gain:	5,0dBi
Antenna type:	Wi-Fi/Bluetooth
Operating temperature (range):	-40°C ~ 65°C
Antenna shape:	Rod
Type of connector:	Straight male SMA
Polarisation:	Linear
Impedance:	50Ohm

Detailed description

Product Type: WiFi/Bluetooth Antenna

Type: Omnidirectional
Frequency: 2.4÷2.5GHz
Gain: 5dBi
Dimensions: L195 × Φ13mm
Connector Type: SMA male straight
SWR: <= 2.0
