HD-AN2400-33C01 (AN060)

Symbol Micros: RF AN24HD-33c01

99771

RF AN24HD-33c01

Contractor Symbol:

Case : Rys.AN2400-33C01

Datasheet

Technical drawing Add to favourites

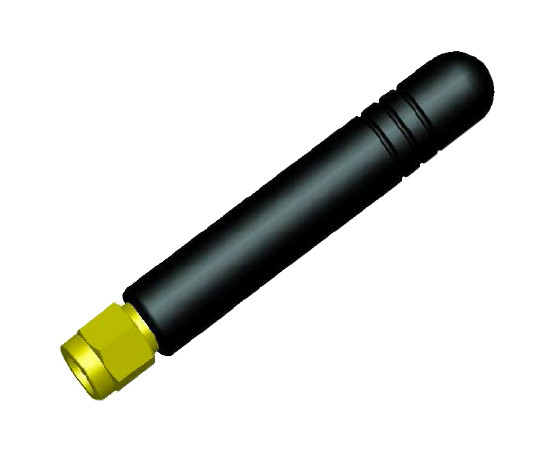

WiFi/Bluetooth Antenna, Omni-Directional, 2.4÷2.4835GHz, gain 2dBi, L×Φ60×7.7mm SMA straight male connector

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	60x7,7mm
Frequency range:	2,4~2,4835GHz
Peak gain:	2,0dBi
Antenna type:	Wi-Fi/Bluetooth
Operating temperature (range):	-40°C ~ 85°C
Antenna shape:	Pipe
Type of connector:	Straight male SMA

All parameters

Manufacturer:: import Manufacturer part number: AN060 RoHS Case style: Rys.AN2400-33C01

In stock:

25 pcs.

Quantity of pcs.	1+	5+	25+	100+	300+
Net price (EUR)	1,7569	1,3032	1,1236	1,0592	1,0338

Add to comparison tool Add inquiry (RFQ)

Packaging:
25 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	60x7,7mm
Frequency range:	2,4~2,4835GHz
Peak gain:	2,0dBi
Antenna type:	Wi-Fi/Bluetooth
Operating temperature (range):	-40°C ~ 85°C
Antenna shape:	Pipe
Type of connector:	Straight male SMA
Cable type:	RG178
Polarisation:	Linear
Impedance:	50Ohm

Detailed description

Typ produktu: Antena WiFi/Bluetooth

Typ: dookólna
Częstotliwość: 2.4÷2.5GHz
Zysk energetyczny: 2÷3dBi
Wymiary: L59.5 × Φ9.2mm
Typ złącza: SMA męskie proste
SWR: <= 2.0
