HD-AN2400-5701 (AN109.WIFI)

Symbol Micros: RF AN24HD-5701

99772

RF AN24HD-5701

Contractor Symbol:

Case : Rys.AN2400-5701

Datasheet

Technical drawing Add to favourites

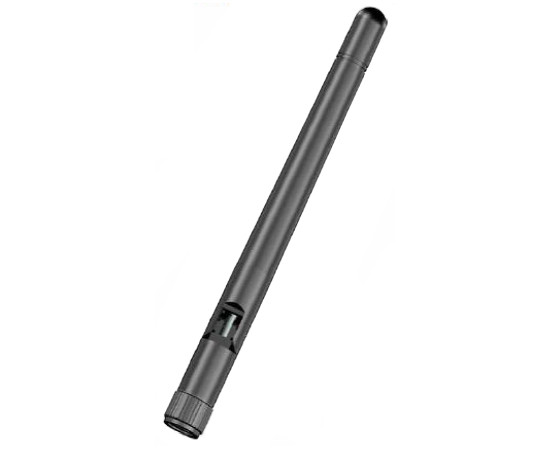

WiFi/Bluetooth Antenna, Omni-Directional, 2.4÷2.5GHz, gain 2dBi, L×Φ 109×10mm RP-SMA rotating male connector

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	109x10mm
Frequency range:	2,4~2,5GHz
Peak gain:	2,0dBi
Antenna type:	Wi-Fi/Bluetooth
Operating temperature (range):	-40°C ~ 65°C
Antenna shape:	Pipe
Type of connector:	Rotated male RP-SMA

All parameters

Manufacturer:: import Manufacturer part number: AN109.WIFI RoHS Case style: Rys.AN2400-5701

In stock:

80 pcs.

Quantity of pcs.	1+	5+	50+	100+	300+
Net price (EUR)	1,5206	1,1295	0,9386	0,9156	0,8949

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/100 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	109x10mm
Frequency range:	2,4~2,5GHz
Peak gain:	2,0dBi
Antenna type:	Wi-Fi/Bluetooth
Operating temperature (range):	-40°C ~ 65°C
Antenna shape:	Pipe
Type of connector:	Rotated male RP-SMA
Cable type:	RG178
Polarisation:	Linear
Impedance:	50Ohm

Detailed description

Typ produktu: Antena WiFi/Bluetooth

Typ: dookólna
Częstotliwość: 2.4÷2.5GHz
Zysk energetyczny: 2÷3dBi
Wymiary: L109 × Φ10mm
Typ złącza: RP-SMA męskie obracane
SWR: <= 2.0
