AN067

Symbol Micros: RF AN24HD-57b1

99773

RF AN24HD-57b1

Contractor Symbol:

Case : Rys.AN2400-57B1

Datasheet

Technical drawing Add to favourites

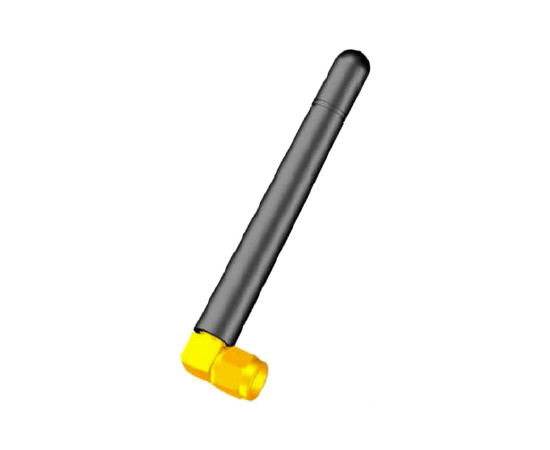

WiFi/Bluetooth Antenna, Omni-Directional, 2.4÷2.5GHz, gain 2dBi, L×Φ 66.8×8mm SMA right angle male connector

Product description

Parameters

Dimensions:	72,4x8,8mm
Frequency range:	2,4~2,5GHz
Peak gain:	2,0dBi
Antenna type:	Wi-Fi/Bluetooth
Operating temperature (range):	-40°C ~ 65°C
Antenna shape:	Pipe
Type of connector:	Angular male SMA

All parameters

Manufacturer:: import Manufacturer part number: AN067 RoHS Case style: Rys.AN2400-57B1

In stock:

25 pcs.

Quantity of pcs.	1+	5+	25+	100+	400+
Net price (EUR)	1,5870	1,1123	0,9284	0,8633	0,8354

Add to comparison tool Add inquiry (RFQ)

Packaging:
25 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	72,4x8,8mm
Frequency range:	2,4~2,5GHz
Peak gain:	2,0dBi
Antenna type:	Wi-Fi/Bluetooth
Operating temperature (range):	-40°C ~ 65°C
Antenna shape:	Pipe
Type of connector:	Angular male SMA
Polarisation:	Linear
Impedance:	50Ohm

Detailed description

Product Type: WiFi/Bluetooth Antenna

Type: Omnidirectional
Frequency: 2.4÷2.5GHz
Gain: 2dBi
Dimensions: L66.8 × Φ8mm
Connector Type: SMA male angled
SWR: <= 2.5
