AN406 (replacement for: WIFI-ANT406)
Symbol Micros:
RF AN406
Case : Rys.AN406

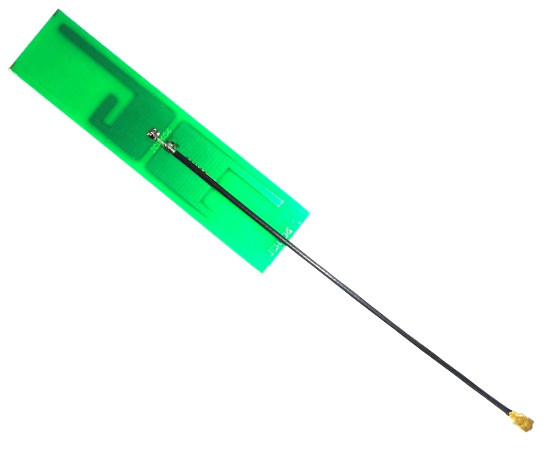

WiFi/Bluetooth Antenna, 2400÷2483.5MHz, gain 3.0dBi, dimensions 66.5×16.5×0.8mm IPEX connector, adhesive mount, RF1.13 10cm cable
Parameters
| Dimensions: | 66,5x16,5x0,8mm |
| Frequency range: | 2400~2483.5MHz |
| Peak gain: | 3,0dBi |
| Antenna type: | Wi-Fi/Bluetooth |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | PCB |
| Mounting: | Adhesive |
Manufacturer:: import
Manufacturer part number: AN406 RoHS
Case style: Rys.AN406
In stock:
5 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 50+ | 200+ |
|---|---|---|---|---|---|
| Net price (EUR) | 1,8890 | 1,5070 | 1,2900 | 1,1579 | 1,1108 |
| Dimensions: | 66,5x16,5x0,8mm |
| Frequency range: | 2400~2483.5MHz |
| Peak gain: | 3,0dBi |
| Antenna type: | Wi-Fi/Bluetooth |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | PCB |
| Mounting: | Adhesive |
| Type of connector: | IPEX |
| Cable type: | RF1.13/RF1.37 |
| Cable length: | 0,1m |
| Polarisation: | Linear |
| Impedance: | 50Ohm |
Detailed description
Product Type: WiFi/Bluetooth Antenna
Frequency: 2400÷2483.5MHz
Gain: 3.0dBi
Dimensions: 66.5×16.5×0.8mm
Connector Type: IPEX
Mounting: Adhesive
Cable: RF1.13 10cm
Polarization: Linear
V.S.W.R: <2.0
Impedance: 50Ω
Operating Temperature: -40÷85°C
