AN824-2 (replacement for: 433M-ANT824)
Symbol Micros:
RF AN824-2
Case : Rys.AN824-2

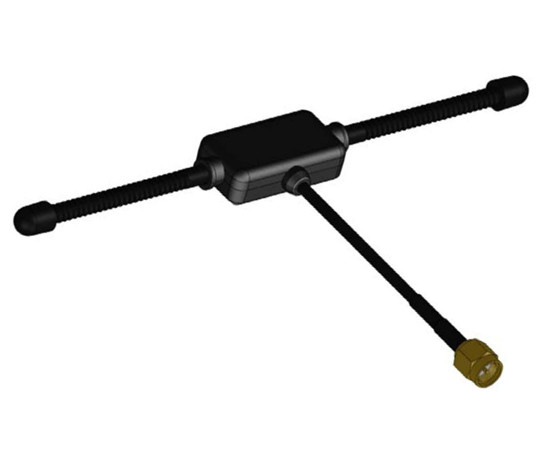

ISM Antenna, 433MHz, gain 3.0dBi, dimensions 150.2×17.8×8.7mm SMA straight male connector, adhesive mount, RG174 3m cable
Parameters
| Dimensions: | 150,2x17,8x8,7mm |
| Frequency range: | 433MHz |
| Peak gain: | 3,0dBi |
| Antenna type: | ISM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Dipole |
| Type of connector: | Straight male SMA |
Manufacturer:: import
Manufacturer part number: AN824-2 RoHS
Case style: Rys.AN824-2
In stock:
8 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 30+ | 100+ |
|---|---|---|---|---|---|
| Net price (EUR) | 3,9849 | 3,3556 | 2,9775 | 2,7873 | 2,6746 |
| Dimensions: | 150,2x17,8x8,7mm |
| Frequency range: | 433MHz |
| Peak gain: | 3,0dBi |
| Antenna type: | ISM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Dipole |
| Type of connector: | Straight male SMA |
| Mounting: | Adhesive |
| Cable type: | RG174 |
| Polarisation: | Linear |
| Cable length: | 3m |
| Impedance: | 50Ohm |
Detailed description
Typ produktu: Antena ISM
Częstotliwość: 433MHz
Zysk energetyczny: 3.0dBi
Wymiary zewnętrzne: 150.2×17.8×8.7mm
Typ złącza: SMA męskie proste
Montaż: przyklejany
Przewód: RG174 3m
Polaryzacja: liniowa
V.S.W.R: <2.0
Impedancja: 50Ω
Temperatura pracy: -40÷85°C
