AN109.868SMAM
Symbol Micros:
RF AN868PD-3sr
Case : Rys.AN868-3SR

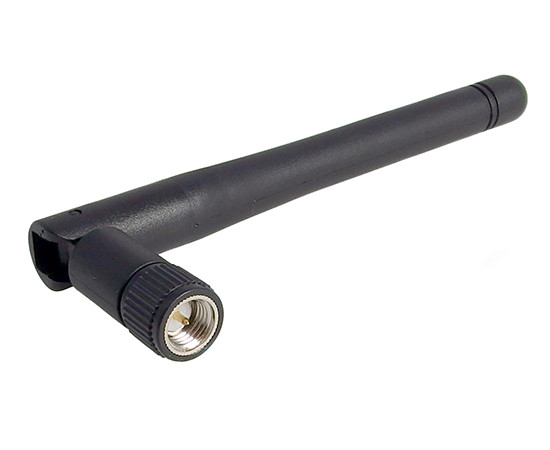

ISM Antenna, Omni-Directional, 868MHz, gain 3dBi, L×Φ 109×10mm SMA rotating male connector
Parameters
| Dimensions: | 80x10mm |
| Frequency range: | 868MHz |
| Peak gain: | 3,0dBi |
| Antenna type: | ISM |
| Operating temperature (range): | -40°C ~ 65°C |
| Antenna shape: | Pipe |
| Mounting: | Screw |
| Dimensions: | 80x10mm |
| Frequency range: | 868MHz |
| Peak gain: | 3,0dBi |
| Antenna type: | ISM |
| Operating temperature (range): | -40°C ~ 65°C |
| Antenna shape: | Pipe |
| Mounting: | Screw |
| Type of connector: | Rotated male SMA |
| Polarisation: | Linear |
| Impedance: | 50Ohm |
Detailed description
Product type: ISM Antenna 868MHz
Antenna type: omni-directional
Frequency: 868MHz
Gain: 3dBi
Size: L109 × Φ10mm
Connector type: SMA male rotation
VSWR: <= 3.0
Impedance: 50Ω
Polarization: linear, vertical
Operating temperature: -40÷65°C
