AN176GSMR
Symbol Micros:
RF ANGSMST-5rss
Case : Rys.ANGSM-5S

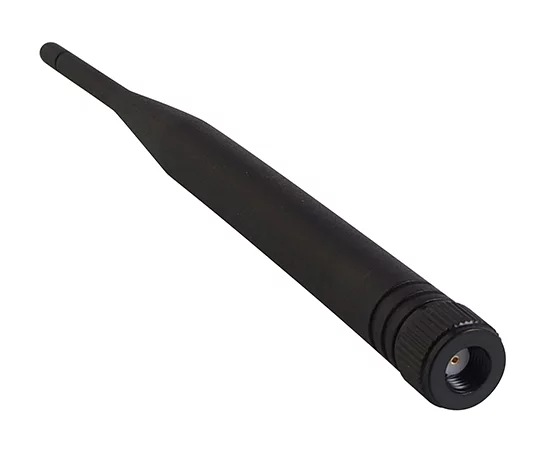

GSM Antenna, Omni-Directional, 900/1800MHz, gain 5dBi, L×Φ 176×13mm RP-SMA straight male connector
Parameters
| Dimensions: | 176x13mm |
| Frequency range: | 900/1800MHz |
| Peak gain: | 5,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 65°C |
| Antenna shape: | Rod |
| Mounting: | Screw |
Manufacturer:: import
Manufacturer part number: AN176GSMR RoHS
Case style: Rys.ANGSM-5S
In stock:
5 pcs.
| Quantity of pcs. | 1+ | 5+ | 25+ | 100+ | 300+ |
|---|---|---|---|---|---|
| Net price (EUR) | 1,9524 | 1,5498 | 1,3846 | 1,3241 | 1,3008 |
Manufacturer:: import
Manufacturer part number: AN176GSMR RoHS
Case style: Rys.ANGSM-5S
In stock:
25 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 25+ | 100+ |
|---|---|---|---|---|---|
| Net price (EUR) | 1,9524 | 1,6290 | 1,4428 | 1,3637 | 1,3008 |
| Dimensions: | 176x13mm |
| Frequency range: | 900/1800MHz |
| Peak gain: | 5,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 65°C |
| Antenna shape: | Rod |
| Mounting: | Screw |
| Type of connector: | Straight male RP-SMA |
| Polarisation: | Linear |
| Impedance: | 50Ohm |
Detailed description
Product Type: GSM Antenna
Type: Omnidirectional
Frequency: 900/1800MHz
Gain: 5dBi
Dimensions: L176 × Φ13mm
Connector Type: RP-SMA male straight
SWR: <= 4.5 @ 824 ~ 960 MHz
<= 4.0 @ 1710 ~ 2170 MHz
Impedance: 50Ω
Polarization: linear vertical (vertical)
Operating Temperature: -40÷65°C
