ST-ANGSM-5SS
Symbol Micros:
RF ANGSMST-5ss
Case : Rys.ANGSM-5A

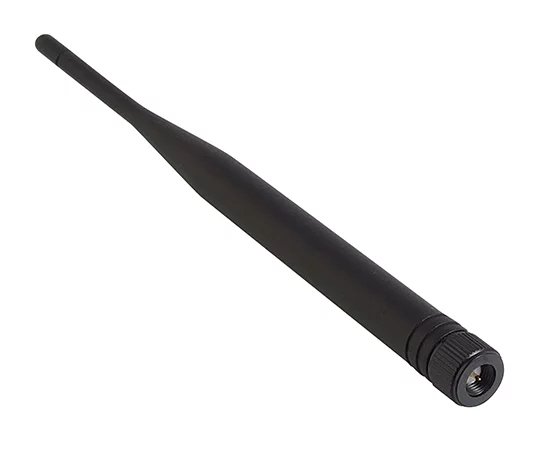

GSM Antenna, Omni-Directional, 900/1800MHz, gain 5dBi, L×Φ174×9mm SMA straight male connector
Parameters
| Dimensions: | 174x9mm |
| Frequency range: | 900/1800MHz |
| Peak gain: | 5,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Rod |
| Mounting: | Screw |
Manufacturer:: import
Manufacturer part number: ST-ANGSM-5SS RoHS
Case style: Rys.ANGSM-5A
In stock:
15 pcs.
| Quantity of pcs. | 1+ | 5+ | 25+ | 100+ | 300+ |
|---|---|---|---|---|---|
| Net price (EUR) | 1,9786 | 1,5706 | 1,4032 | 1,3419 | 1,3183 |
| Dimensions: | 174x9mm |
| Frequency range: | 900/1800MHz |
| Peak gain: | 5,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Rod |
| Mounting: | Screw |
| Type of connector: | Straight male SMA |
| Polarisation: | Linear |
| Impedance: | 50Ohm |
Detailed description
Product Type: GSM Antenna
Type: Omnidirectional
Frequency: 900/1800MHz
Gain: 5dBi
Dimensions: L174 × Φ9mm
Connector Type: SMA male straight
SWR: <= 2.0
Impedance: 50Ω
Return Loss: -10dB (max)
Polarization: linear vertical (vertical)
Operating Temperature: -10÷60°C
