ANT1575-1540D

Symbol Micros: RF ANT1575-1540d

276001

RF ANT1575-1540d

Contractor Symbol:

Case : Rys.ANT1575-1540D

Datasheet

Technical drawing Add to favourites

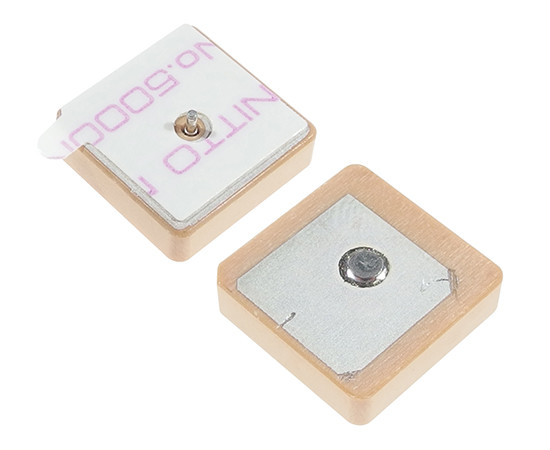

GPS Antenna, 1575.42MHz, BW 4.5MHz, dimensions 15×15×4mm, adhesive mount

Product description

Parameters

Dimensions:	15x15x4mm
Frequency range:	1575,42MHz
Antenna type:	GPS
Operating temperature (range):	-40°C ~ 105°C
Antenna shape:	Square
Mounting:	Adhesive
Polarisation:	RHCP

All parameters

Manufacturer:: import Manufacturer part number: ANT1575-1540D RoHS Case style: Rys.ANT1575-1540D

In stock:

49 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,1509	0,8797	0,7264	0,6367	0,6061

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	15x15x4mm
Frequency range:	1575,42MHz
Antenna type:	GPS
Operating temperature (range):	-40°C ~ 105°C
Antenna shape:	Square
Mounting:	Adhesive
Polarisation:	RHCP
Impedance:	50Ohm

Detailed description

Product Type: GPS Antenna

Frequency: 1577.5±2.5MHz
Bandwidth -10dB (min): 4.5MHz
External Dimensions: 15×15×4mm
Mounting: adhesive
Polarization: RHCP
V.S.W.R (max): 1.5
Impedance: 50Ω
